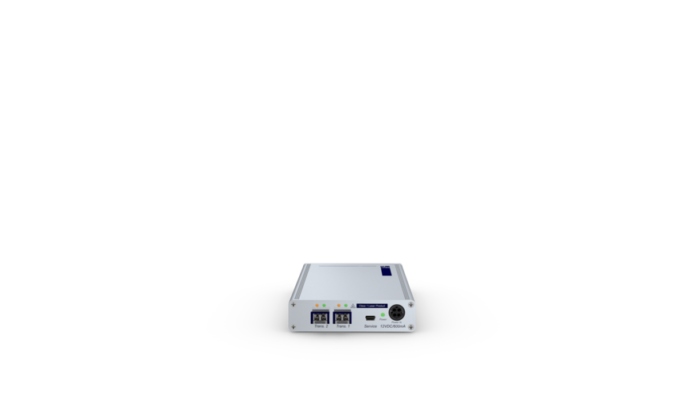

DL-DVI-CPU-Fiber(M)-UC incl. PowerPack (A2320321)

Product DetailsVideobluedec™ – advanced developed multi-stage compression for best video quality and practically latency-free transmission. This method enables pixel-perfect video transmission with efficient bandwidth use.The end devices can be flexibly combined with each other, even if they process different video signals (Mix & Match)Use of a monitor profile optimized for the computer module (EDID profile)Flexible use of the EDID data of the workplace monitor as requiredResolution up to 2560 × 1600 @ 60 Hz, 4096 × 2160 @ 30 Hz SignalsBidirectional audio signals (stereo)TransmissionThe transmission distance is up to 400 meters over fiber multimode optics, incl. transmission module(s)/SFP transceiver(s)DeviceImproved security through physical separation between workplaces and computersAccess to standard interfaces of the computer, with no software installation requiredThe devices are compatible with the ControlCenter-Digital and ControlCenter-Compact series (matrix operation) and other end devices for computer and workplace connections (extender operation)PowerPack not included in the scope of delivery for Basic variantsUC variant: computer module with two transmission lines for redundancyThese modules can be connected to various counterparts, such as compatible console modules or KVM matrix switchesMultiChannel variants (MC): Modules for multi-monitor workplaces with multi-channel videoMC mode uses the full bandwidth for each video channel, whereby a separate transmission line is required for each channelWarrantyA 3-year, free of charge product guaranteeFor an additional fee guarantee extension possibleFeaturesOperation featuresReady for operation out of the box, no additional configuration requiredPermanent keyboard/mouse emulation ensures a stable systemCompatibility with special USB-HID input devicesOperation via multilingual on-screen display (OSD) and hotkeysSupport of DDC/CI (Display Data Channel / Command Interface) to enable centralized software-side control of monitor settings such as brightnessExtensionsDeviceExternal power supply via external 12V power pack or G&D-MultiPower, providing a central and redundant power supplyDevice mounting via RackMount sets, TableMount sets or other mounting toolsSystem expansionYou can integrate the matrix-compatible extenders into a complete installation with a ControlCenter-Compact or ControlCenter-Digital, even at a later point in time. This provides you with even greater flexibility through the possibility of distributed access – and the existing components can continue to be used.Technical SpecificationsGeneralBrandG&DProduct groupKVM extendersProduct FamilyMTX-CPU/CONCountry of originGermanyNumber of sources1KVM matrix system componentComputer module (digital)Power Supplyno redundancyInput optionsUSB mouseyesUSB keyboardyesPS/2 mouseyesPS/2 keyboardyesTransmissionNumber of transmission channels1Redundant transmission channelsRedundant KVM transmission availableRange100 m (62.5/125µm) 200 m (50.0/125µm, OM2) 400 m (50.0/125µm, OM3) 70 m (62.5/125µm) 150 m (50.0/125µm) 400 m (50.0/125µm, OM4 – 4700MHz*km)Laser classClass 1Type of interfaceLC-DuplexWavelength850 nmMediumFiber MMData rate2.5 Gbit/sVideo inputQuantity1FormatDualLink DVIColour depth24 bitPixel rate ca.25 MPixel/s to 330 MPixel/sVertical frequency24 Hz to 120 HzHorizontal frequency25 kHz to 185 kHzExemplary resolutions1280 × 1024 (85 Hz) 1920 × 1200 (60 Hz) 2048 × 2048 (60 Hz) 2560 × 1600 (60 Hz) 640 × 480 (60 Hz) 2048 × 2160 (60 Hz) 3840 × 2160 (30 Hz) 4096 × 2160 (30 Hz)General NotesFurther VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.Supported industry standardsDisplay Data Channel (DDC) Display Data Channel Command Interface (DDC/CI)AudioTransmission typeBidirectional StereoResolutions24 bit digitalSampling rateup to 96 kHzBandwidth22 kHzAudio supportAnalogMaintenanceUpdate viaUpdate Wizard (service interface)Serviceport settings115200bps (8/N/1)HousingMaterialAnodised aluminiumActive cooling (fan)noWidth ca.105 mmHeight ca.26 mmDepth ca.164 mmIP protection classIP20Weight ca.0.37 kgOperating conditionsOperating environment temperature5 °C to 45 °COperating air humidity, non-condensing20 % to 80 %Area of applicationIndoor useMaximum operating altitude above sea level3,048 mStorage environment temperature-20 °C to 60 °CStorage air humidity, non-condensing15 % to 85 %MTBF280,000 h at 25°CConformitiesCE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)Power supplyQuantity1TypeExternalInput voltage12 VDCCurrent consumption0.6 APower consumption max.7.2 WHeat output max.6.2 WSource: G&D — DL-DVI-CPU-Fiber(M)-UC incl. PowerPack (A2320321). Verify with manufacturer.
